SQ102 BALE SQUEEZE
Picks up tied bundles that are 4, 5, or 6 bales wide and 3 bales long.
Inside length of 101 inches.
For maximum efficiency, it is recommended to pick up as many bales as the loader can safely handle.
Has a maximum lifting capacity of 4000 pounds.
Weighs 1,060 pounds without the loader bracket.
Works with E18, E15, F15, and F12 bale packs.
Picks up tied bundles that are 4, 5, or 6 bales wide and 3 bales long.
Inside length of 101 inches.
For maximum efficiency, it is recommended to pick up as many bales as the loader can safely handle.
Has a maximum lifting capacity of 4000 pounds.
Weighs 1,060 pounds without the loader bracket.
Works with E18, E15, F15, and F12 bale packs.
Picks up tied bundles that are 4, 5, or 6 bales wide and 3 bales long.
Inside length of 101 inches.
For maximum efficiency, it is recommended to pick up as many bales as the loader can safely handle.
Has a maximum lifting capacity of 4000 pounds.
Weighs 1,060 pounds without the loader bracket.
Works with E18, E15, F15, and F12 bale packs.

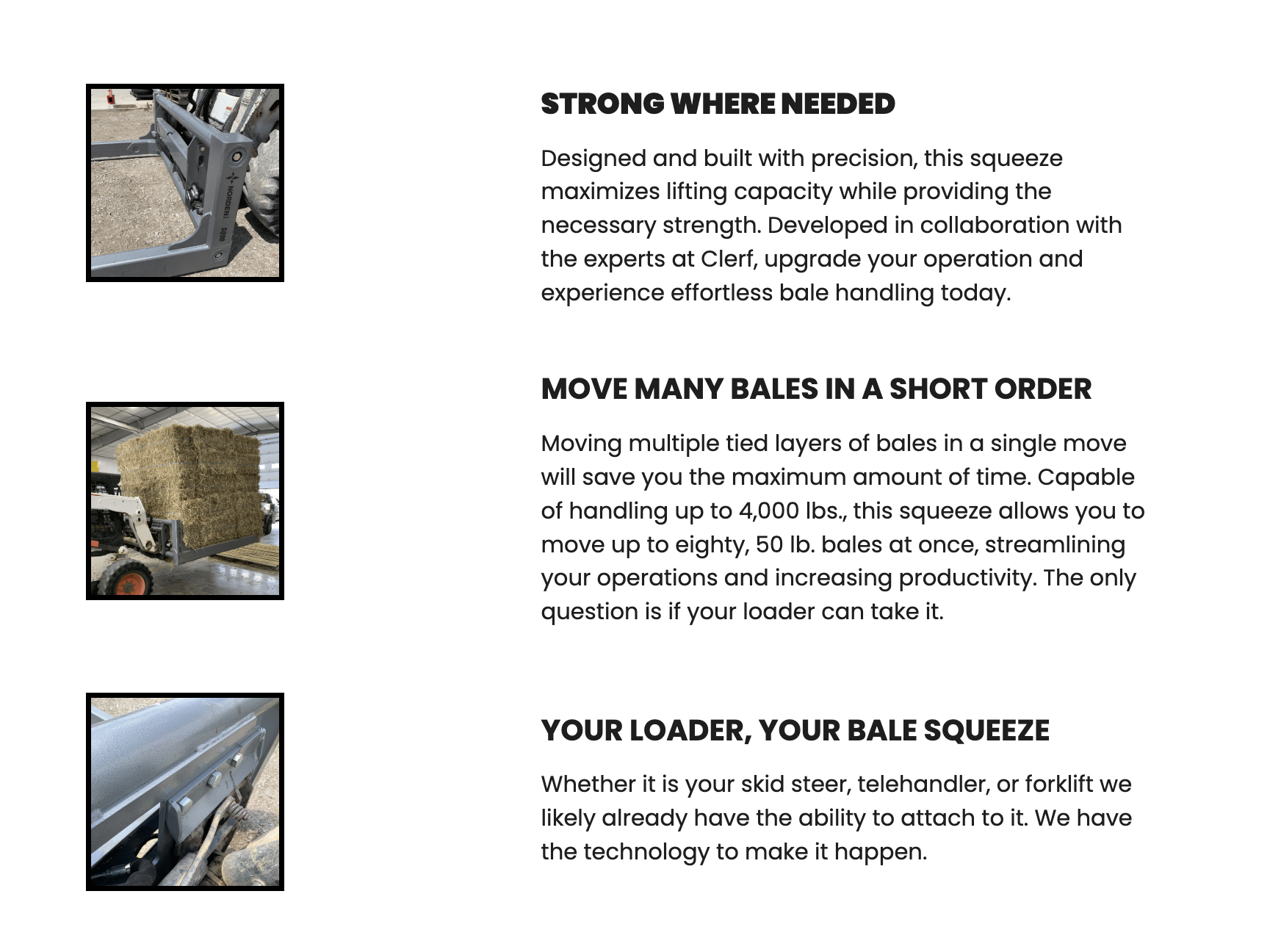

SQ102 BALE SQUEEZE FEATURES + SPECS
SQ102 BALE SQUEEZE DETAILED SPECS
Shipping Dimensions
107” L x 74” W x 29” H
Working Dimensions
101” L x 67.5-103.5” W x 29” H
Approximate Weight
1,060 lbs.
Group Size
72-90” W x 101-108” L
Maximum Lifting Capacity
4,000 lbs.
Bale Packs
F12, F15, E15 and E18
