510F GRABBER
10 bale grabber for moving bales arranged 2 long, 4 wide plus tie row, on edge.
Bale groups can be picked up from the tie row end or the opposite end, enabling cross-stacking
Matches bundles made with the AF10 bale accumulator.
Heavy-duty grapple.
Requires a loader with at least 1,700lb lift capacity and one set of remotes
10 bale grabber for moving bales arranged 2 long, 4 wide plus tie row, on edge.
Bale groups can be picked up from the tie row end or the opposite end, enabling cross-stacking
Matches bundles made with the AF10 bale accumulator.
Heavy-duty grapple.
Requires a loader with at least 1,700lb lift capacity and one set of remotes
10 bale grabber for moving bales arranged 2 long, 4 wide plus tie row, on edge.
Bale groups can be picked up from the tie row end or the opposite end, enabling cross-stacking
Matches bundles made with the AF10 bale accumulator.
Heavy-duty grapple.
Requires a loader with at least 1,700lb lift capacity and one set of remotes

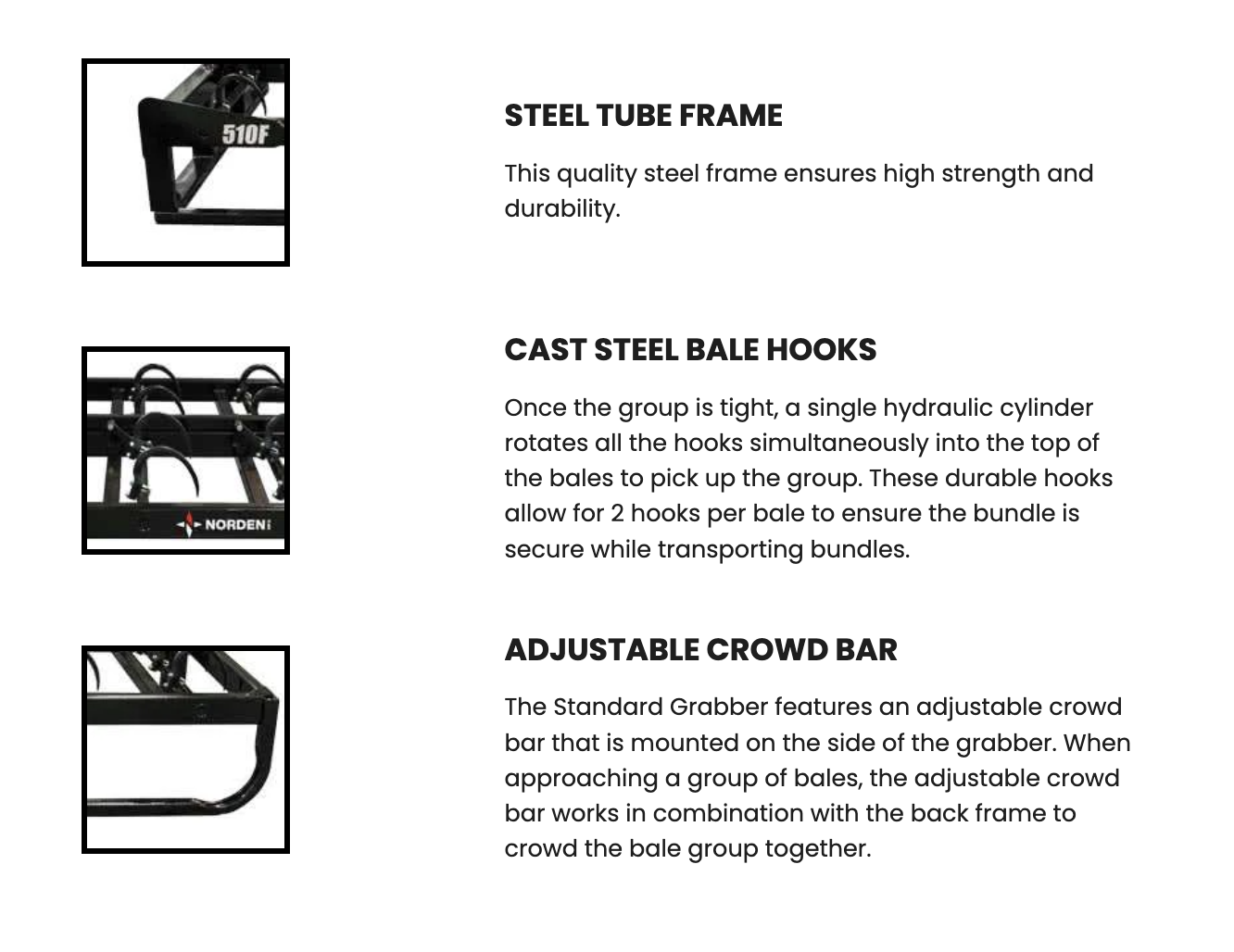

510F TIE GRABBER FEATURES + SPECS
510F TIE GRABBER DETAILED SPECS
Bale Configuration
4 Bales Wide and 2 Bales Long, plus a tie row with 2 bales turned sideways
Bundle Dimensions
72” to 76” Wide by 88” to 94” Long
Required Loader Capacity
1,700 lbs.
Working Height
1 ft. 1 in.
Working Length
7 ft. 6 in.
Working Width
6 ft. 0 in.
Approximate Weight
740 lbs.
