AF12 BALE ACCUMULATOR SYSTEM
SQUARE BALE ACCUMULATOR FOR 12 BALES FLAT
This F12 bale accumulator system is chosen for the fact that the bales are on their strings and still fill an 8.5-foot wagon from side to side. With a touch lower operating weight requirement than the E15, with the same footprint, it is a good compromise. We recommend the F12 bale system for 15,000-30,000 bales per year.
Bales arranged flat with their string side down, 4 bales wide/3 bales long
Handles bales from 32” to 40” in length
12-bale group is well-suited to fill a 20’ wagon
The bale group dimensions are 72” wide by 96”- 120” long
SQUARE BALE ACCUMULATOR FOR 12 BALES FLAT
This F12 bale accumulator system is chosen for the fact that the bales are on their strings and still fill an 8.5-foot wagon from side to side. With a touch lower operating weight requirement than the E15, with the same footprint, it is a good compromise. We recommend the F12 bale system for 15,000-30,000 bales per year.
Bales arranged flat with their string side down, 4 bales wide/3 bales long
Handles bales from 32” to 40” in length
12-bale group is well-suited to fill a 20’ wagon
The bale group dimensions are 72” wide by 96”- 120” long
SQUARE BALE ACCUMULATOR FOR 12 BALES FLAT
This F12 bale accumulator system is chosen for the fact that the bales are on their strings and still fill an 8.5-foot wagon from side to side. With a touch lower operating weight requirement than the E15, with the same footprint, it is a good compromise. We recommend the F12 bale system for 15,000-30,000 bales per year.
Bales arranged flat with their string side down, 4 bales wide/3 bales long
Handles bales from 32” to 40” in length
12-bale group is well-suited to fill a 20’ wagon
The bale group dimensions are 72” wide by 96”- 120” long

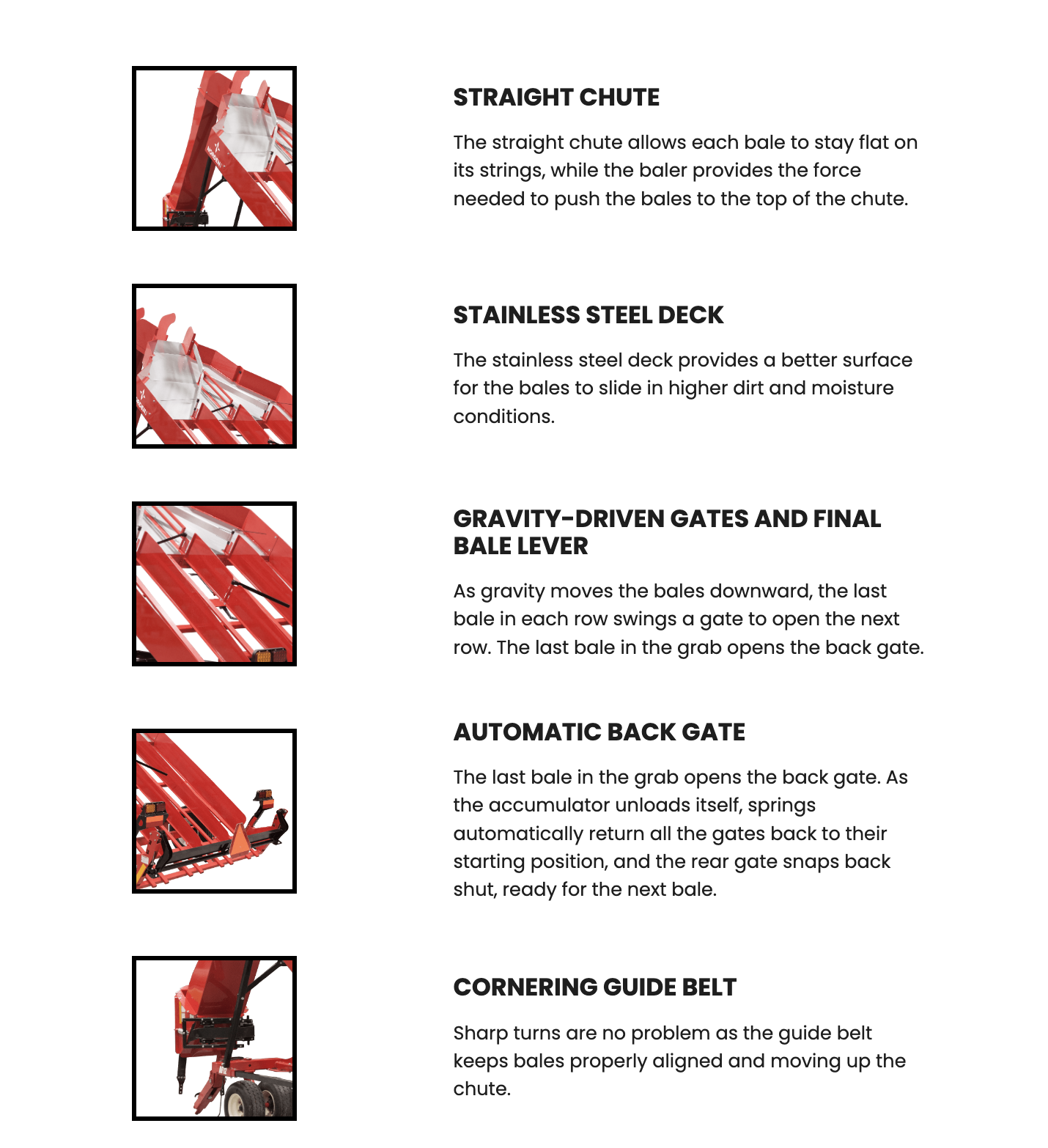

F12 BALE ACCUMULATOR FEATURES
F12 DETAILED SPECS
Bale Configuration
4 Bales Wide and 3 Bales Long
Group Dimensions
72” Wide and 96” to 120” Long
Approximate Weight
2,290 lbs.
Working Height
11 ft. 1 in.
Working Length
21 ft. 1 in.
Working Width
7 ft. 10 in.
