SQ90 HAY SQUEEZE
Picks up tied bundles that are 4, 5, or 6 bales wide and 2.5 bales long.
Inside length of 89 inches.
For maximum efficiency, it is recommended to pick up as many bales as the loader can safely handle.
Has a maximum lifting capacity of 4000 pounds.
Weighs 1,020 pounds without the loader bracket.
Works with the F10 hay bale pack.
Picks up tied bundles that are 4, 5, or 6 bales wide and 2.5 bales long.
Inside length of 89 inches.
For maximum efficiency, it is recommended to pick up as many bales as the loader can safely handle.
Has a maximum lifting capacity of 4000 pounds.
Weighs 1,020 pounds without the loader bracket.
Works with the F10 hay bale pack.
Picks up tied bundles that are 4, 5, or 6 bales wide and 2.5 bales long.
Inside length of 89 inches.
For maximum efficiency, it is recommended to pick up as many bales as the loader can safely handle.
Has a maximum lifting capacity of 4000 pounds.
Weighs 1,020 pounds without the loader bracket.
Works with the F10 hay bale pack.

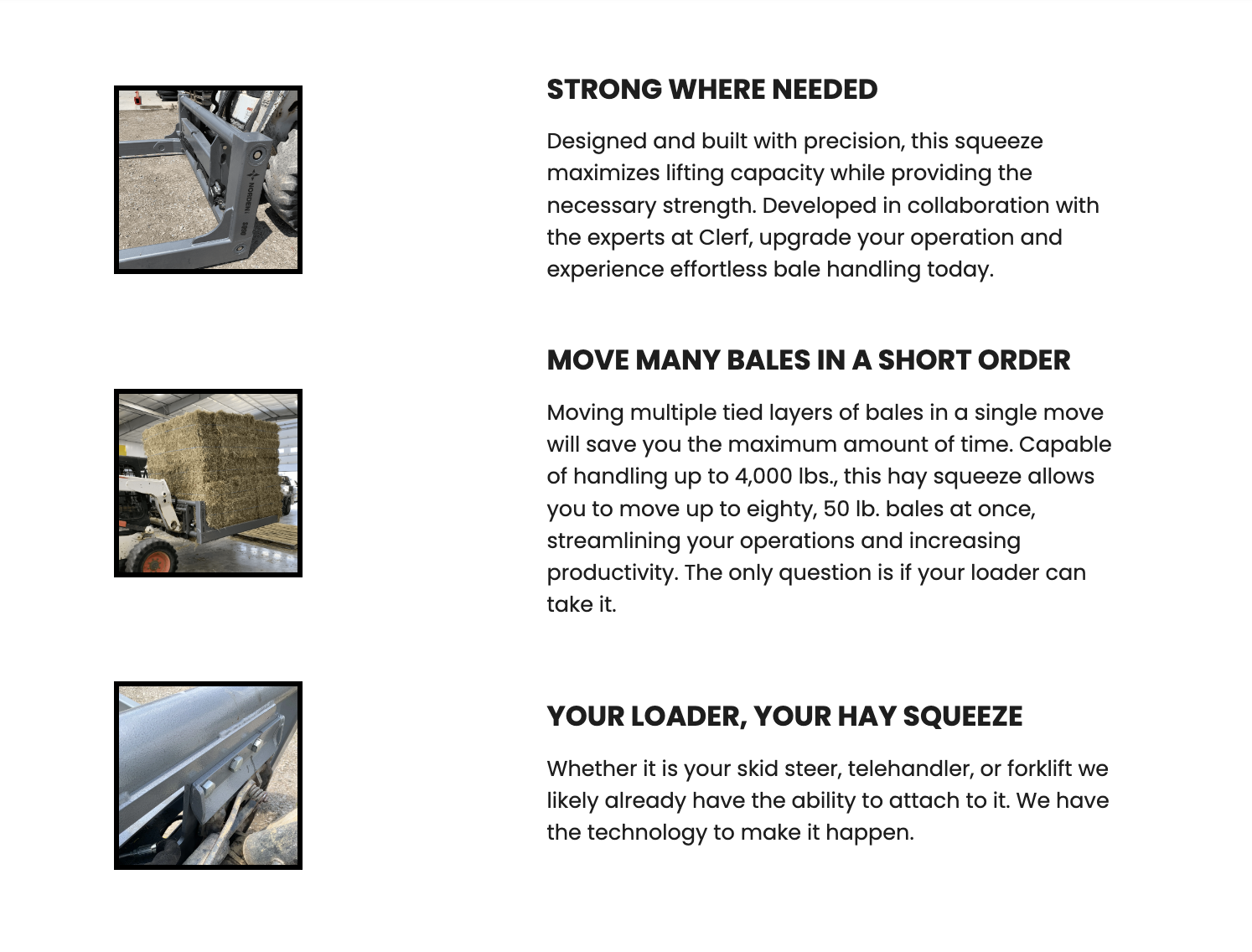

SQ90 SQUEEZE FEATURES + SPECS
SQ90 SQUEEZE DETAILED SPECS
Shipping Dimensions
95” L x 74” W x 29” H
Working Dimensions
89” L x 67.5-103.5” W x 29” H
Approximate Weight
1,020 lbs.
Group Size
72-90” W x 89-96” L
Maximum Lifting Capacity
4,000 lbs.
Bale Packs
F10
