KN615F GRABBER
The KN615F Tie-Grabber picks up and ties bales that are arranged by the AF15 bale accumulator. Five wide, three long, flat on strings.
Bundle arrangement ideal for filling van trailers from the rear and for filling 24’ wagons.
Requires a loader with at least 2,500lb lift capacity, see details for hydraulic requirements
The KN615F Tie-Grabber picks up and ties bales that are arranged by the AF15 bale accumulator. Five wide, three long, flat on strings.
Bundle arrangement ideal for filling van trailers from the rear and for filling 24’ wagons.
Requires a loader with at least 2,500lb lift capacity, see details for hydraulic requirements
The KN615F Tie-Grabber picks up and ties bales that are arranged by the AF15 bale accumulator. Five wide, three long, flat on strings.
Bundle arrangement ideal for filling van trailers from the rear and for filling 24’ wagons.
Requires a loader with at least 2,500lb lift capacity, see details for hydraulic requirements

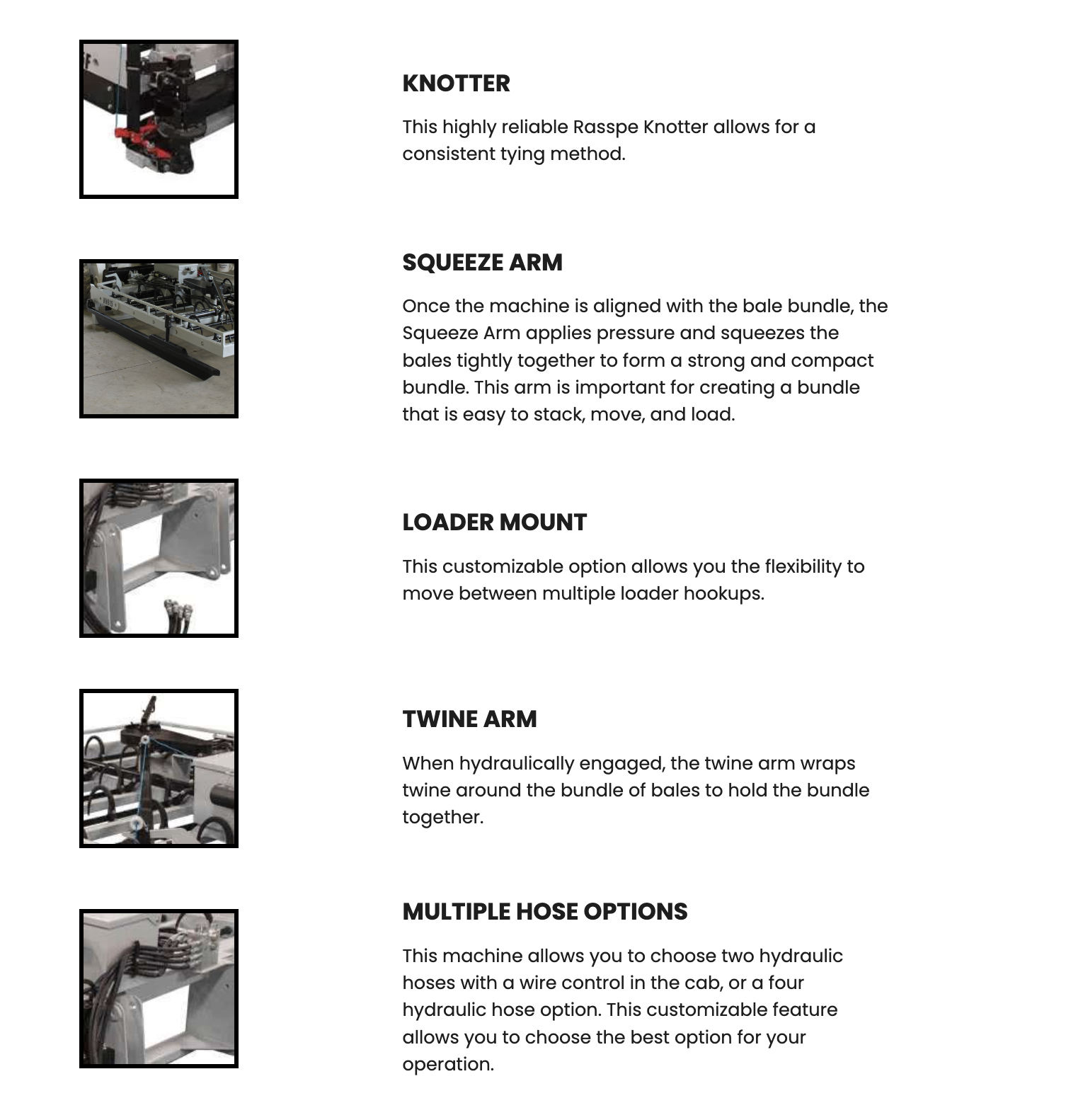

KN615F TIE GRABBER FEATURES + SPECS
KN615F TIE GRABBER DETAILED SPECS
Bale Configuration
5 Bales Wide and 3 Bales Long
Bundle Dimensions
90” Wide by 96” to 108” Long
Required Loader Capacity
2,500 lbs.
Working Height
2 ft. 6 in.
Working Length
7 ft. 11 in.
Working Width
7 ft. 3.5 in.
Approximate Weight
1,515 lbs.
